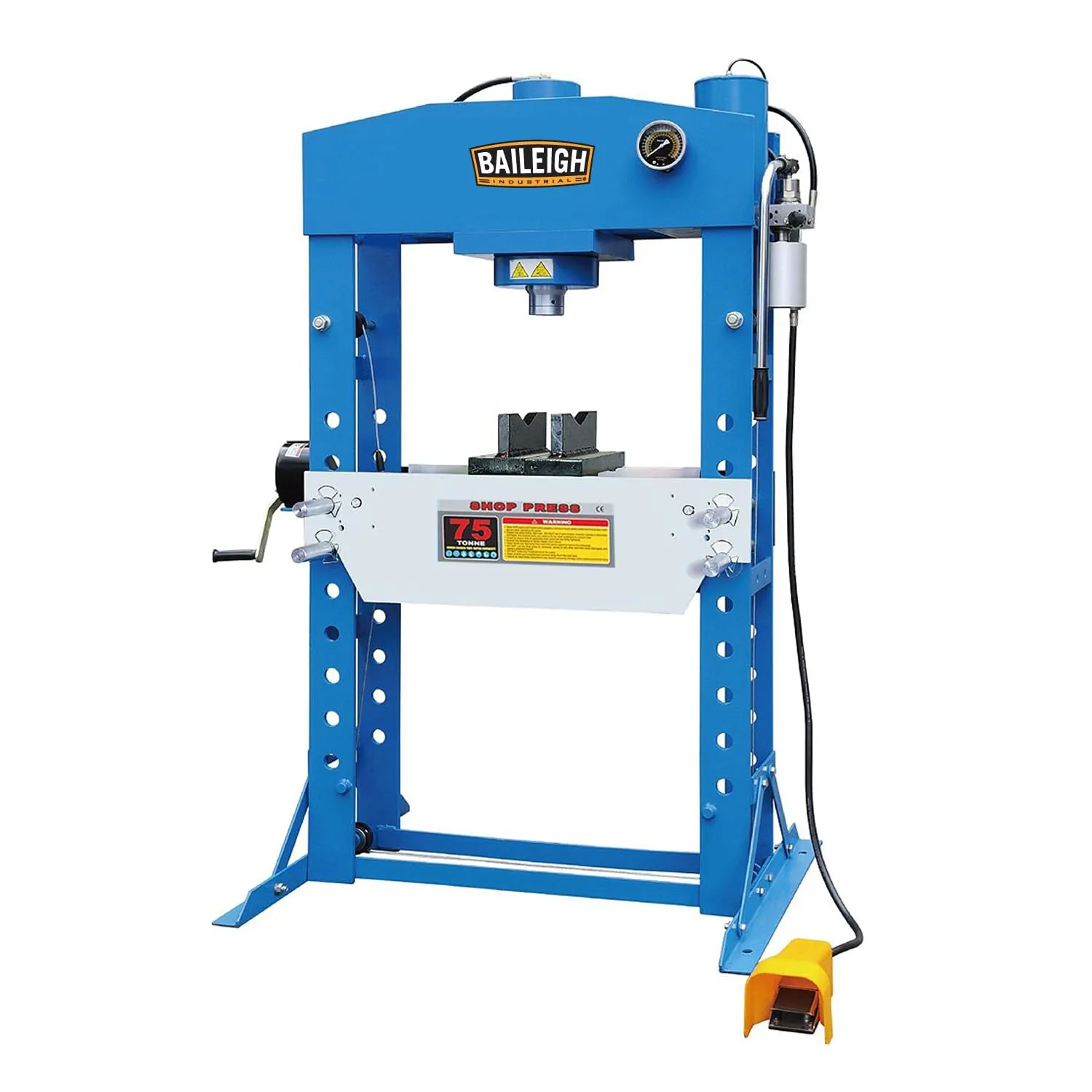

Name: Baileigh 75-Ton Pneumatic Shop Press (HSP-75A)
SKU: 858884

31.5" working width
Large 9" diameter cylinder with a 9.8" stroke
Requires a 90 to 115 psi compressor
Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity
Integrated foot pedal makes this H-frame press easy to control
If you'd like more delicate control, you can choose the manual hand pump located on the side of the press
Winch and pulley system will save time when lifting and lowering the working table

The Baileigh HSP-75A H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won’t flex or buckle on you!

The large 9-inch diameter cylinder of the shop press features a 9.8-inch stroke. Yet, the operation of the press is simple and controllable because of its integrated foot pedal. For even more control, the operator may chose to use the manual hand pump that is located on the side of the pneumatic press. Industrial grade hydraulics are standard on this shop press to ensure years of useful operation. Just hook up this press to a compressor that can put out between 90 to 115 psi and go to it. The Baileigh Industrial shop press also has a unique feature that allows the operator to lift and lower the working table with the help of a winch and pulley system. This will save time as well as the back of the operator when table relocation is needed. The pneumatic press also comes with its own set of vee blocks.

Baileigh covers this shop press with a one-year parts warranty and lifetime technical support by phone.

Product Dimensions ‏ : ‎ 57.25 x 31.5 x 75.37 inches; 1110 Pounds
Date First Available ‏ : ‎ September 25, 2013
Manufacturer ‏ : ‎ Baileigh Industrial
Country of Origin ‏ : ‎ China
