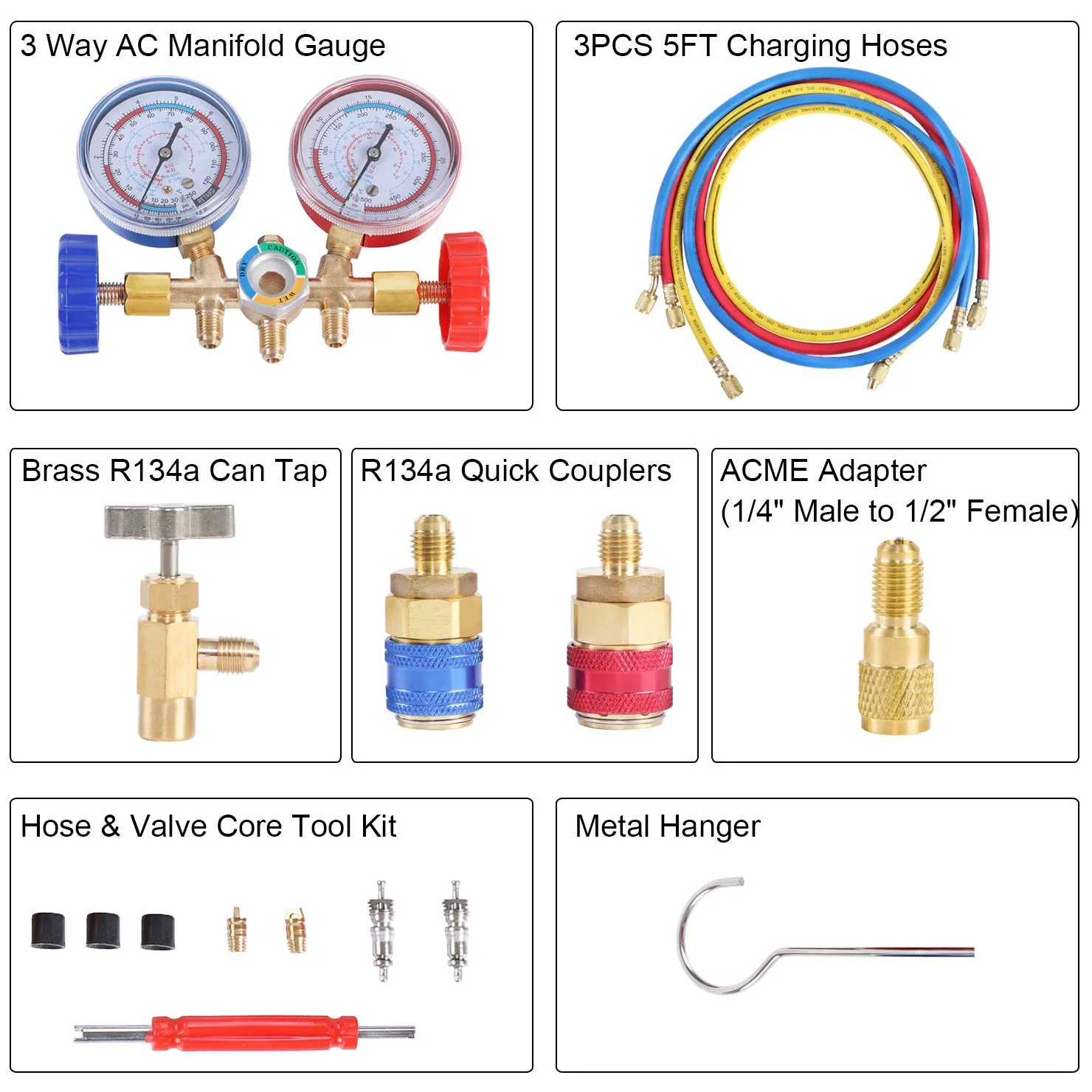

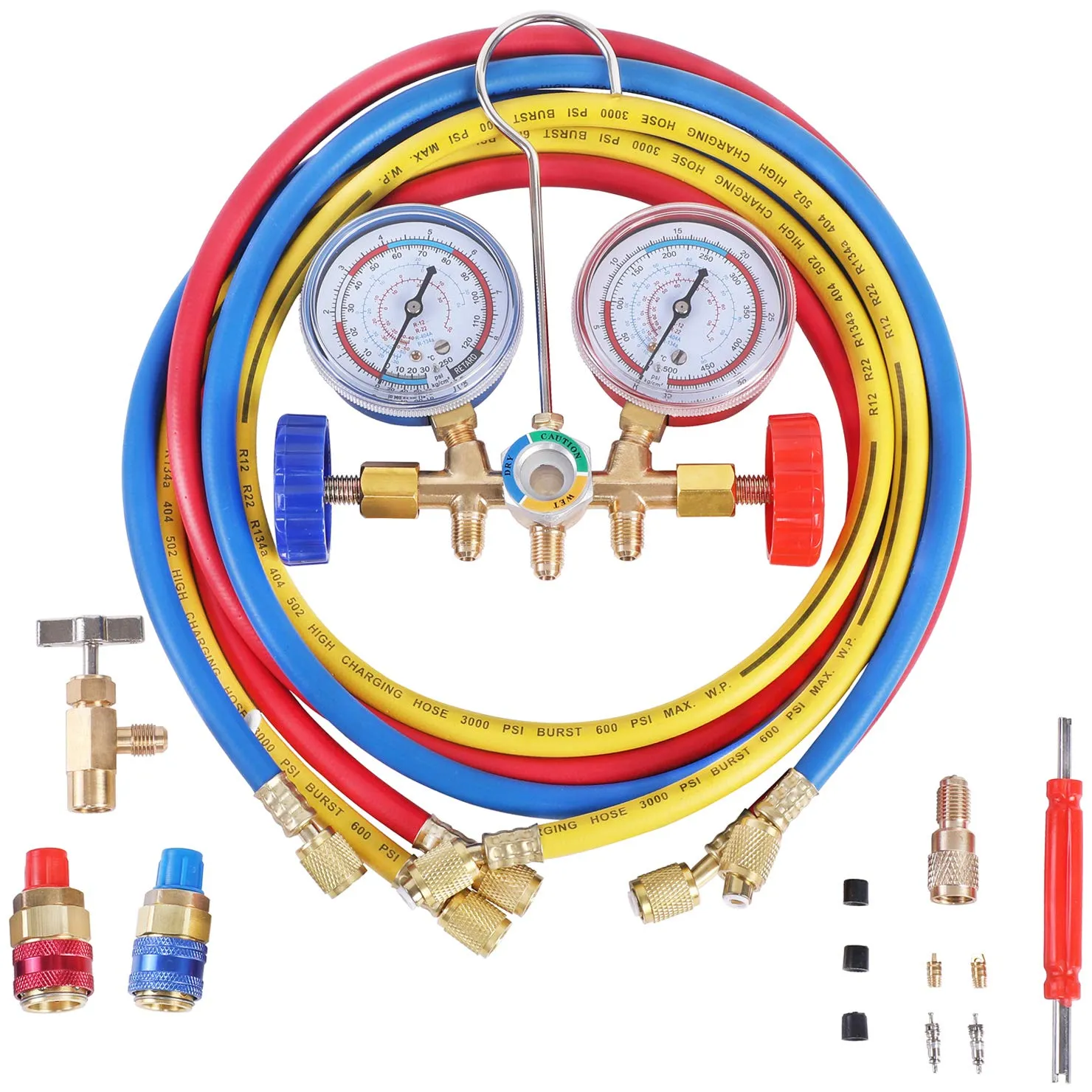

- This is a complete AC freon charge kit to recharge R134a R404a refrigerant, includes 3 way AC manifold gauge, 3PCS 5FT long hose, 2PCS R134a quick couplers, R134a can tap, adapter and valve core tool kit. It is a perfect tool kit which is used for auto and household air conditioner, to evacuation/vacuum, diagnostic check, freon charging and recovery.

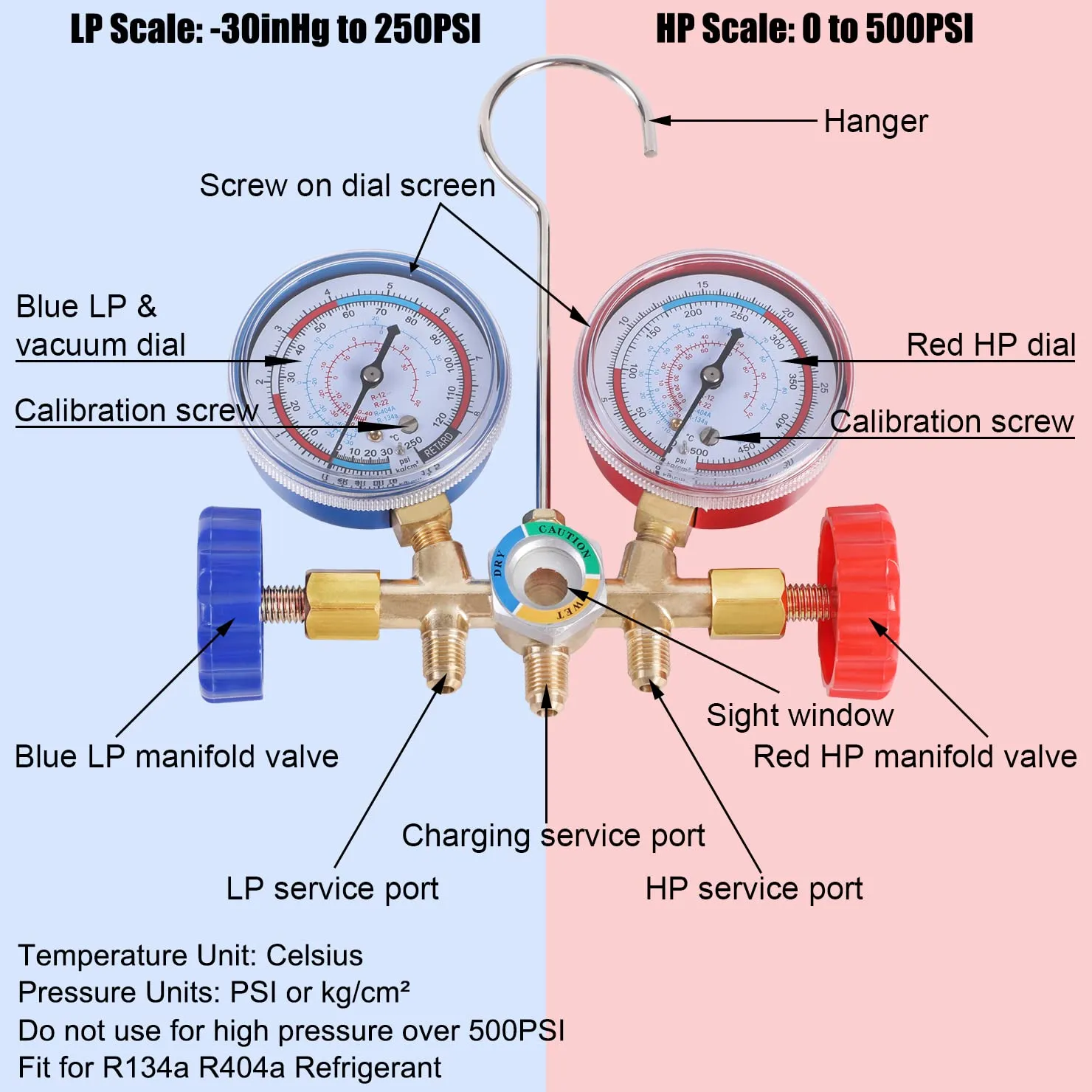

- The 3 way HVAC manifold gauge uses brass manifold body, brass parts, anti-corrosion and durability. Color coded scale for R134a R404a on 2-3/4" big dial, plus the sight window on manifold body, you can monitor easily on refrigerant charging and recovery. Blue gauge (low): -30inHg to 250PSI, Red gauge (high): 0 to 500PSI, Celsius unit and a build-in screw in dials for calibration.

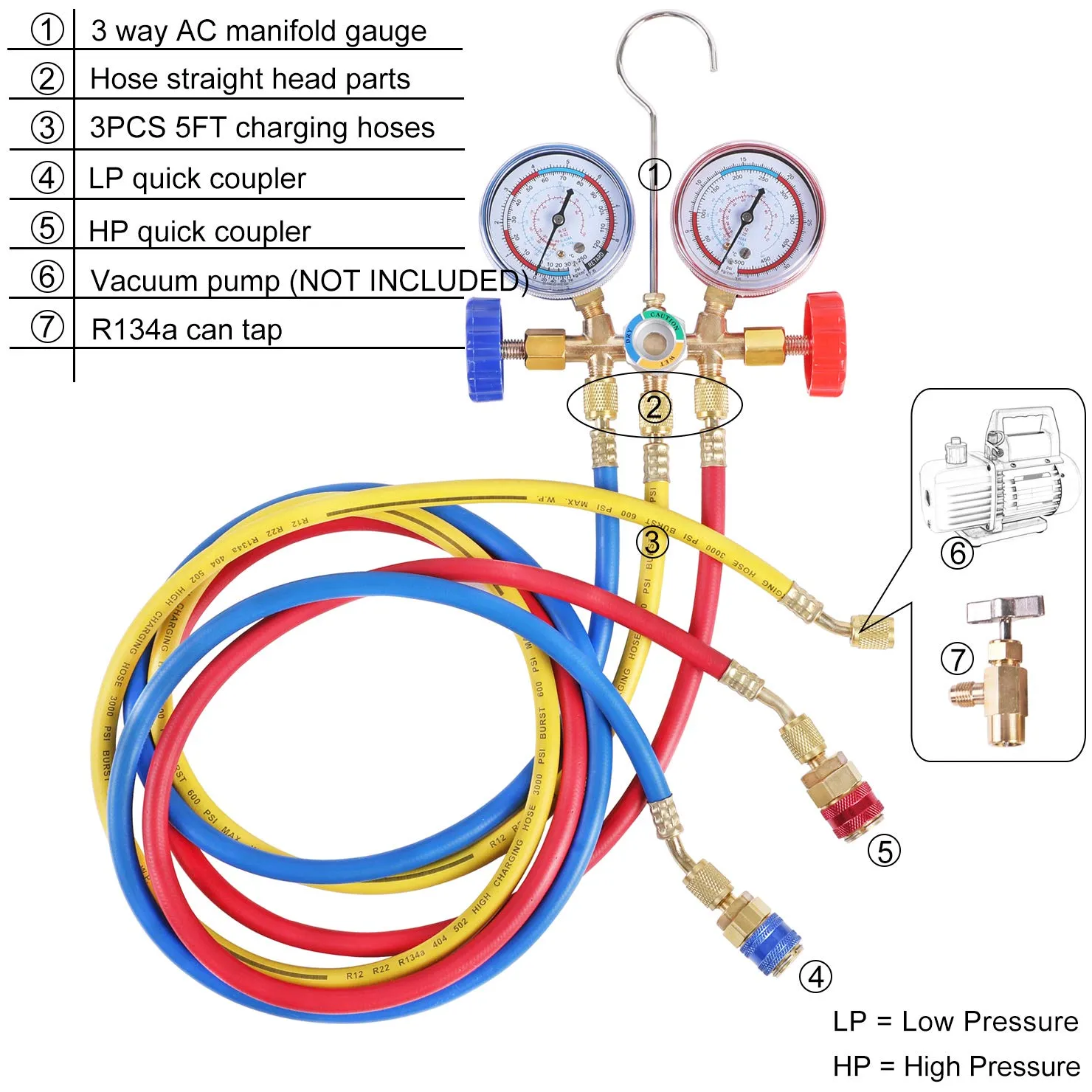

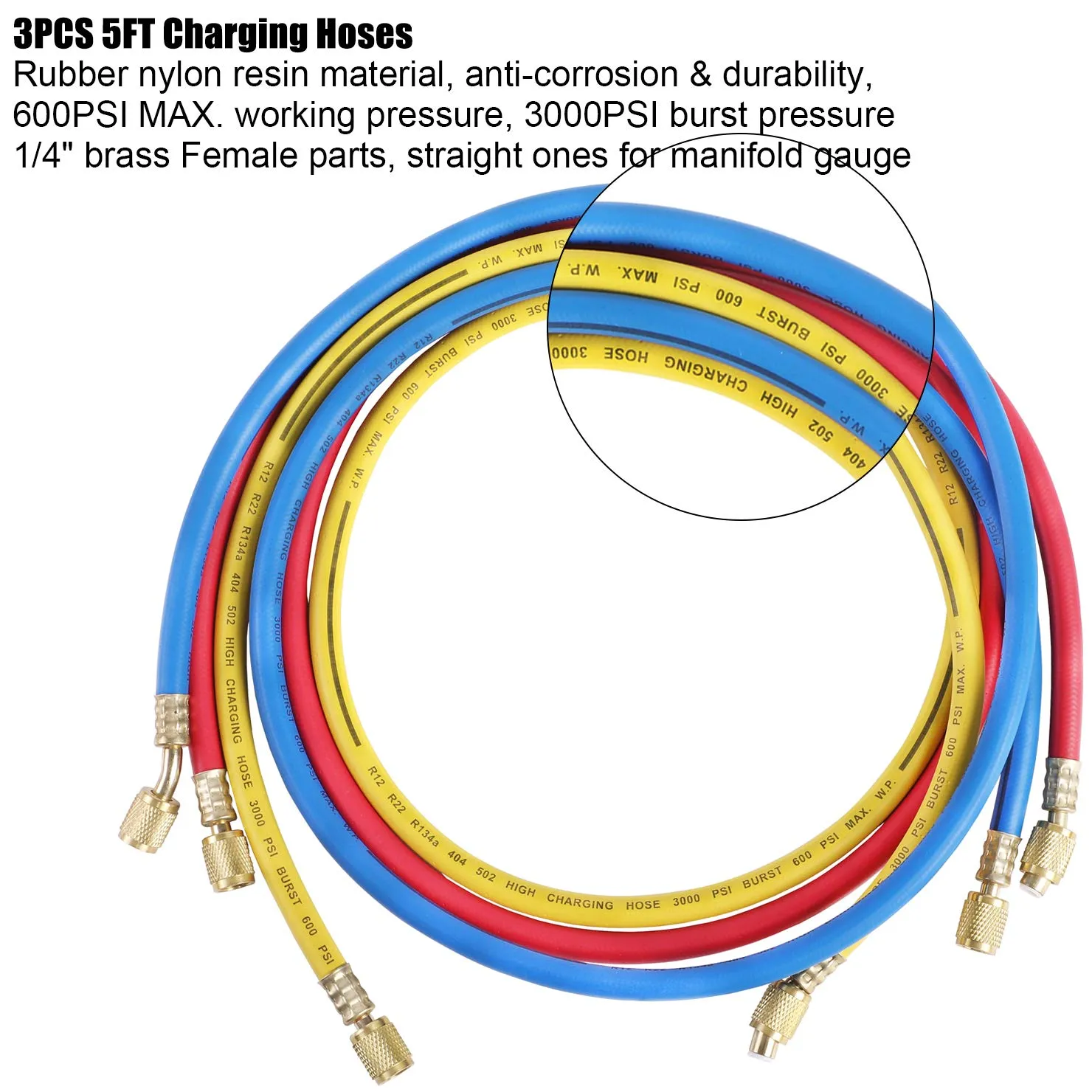

- The 3PCS refrigerant charging hoses use rubber nylon resin material and are equipped with 1/4" Female brass parts, anti-corrosion and durability. Burst pressure: 3000PSI, Max working pressure: 600PSI. Red hose connects the service port under the red gauge to the red quick coupler, blue to blue, the yellow hose connects the charging port in the middle to the can tap or vacuum pump.

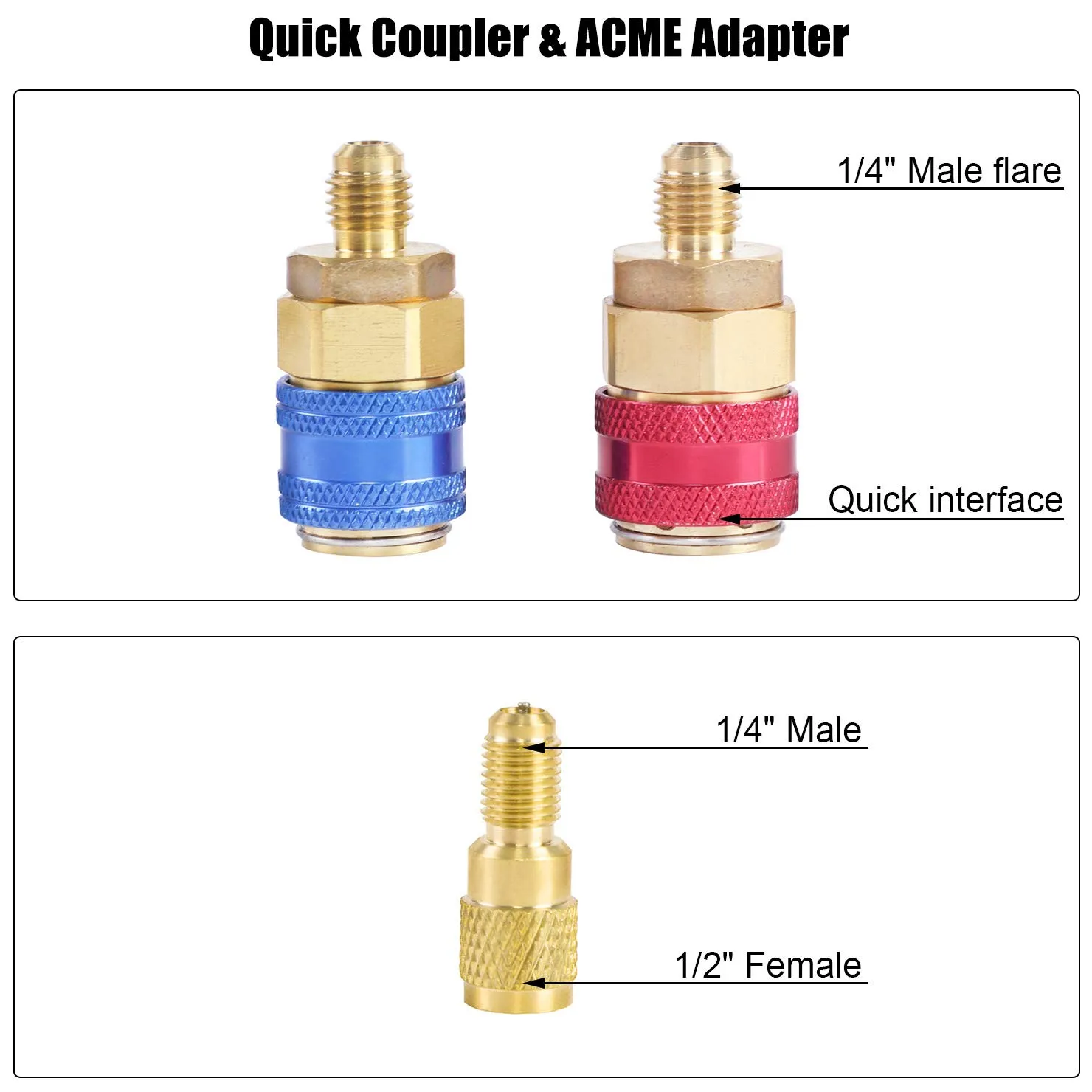

- R134a quick couplers adopt superior brass and aluminium material, designed with quick connector interface, push to lock, very easy to connect and disconnect all type of R134a service port. Blue coupler is for automotive R134a air conditioning suction service port, and red for R134a AC discharge service port.

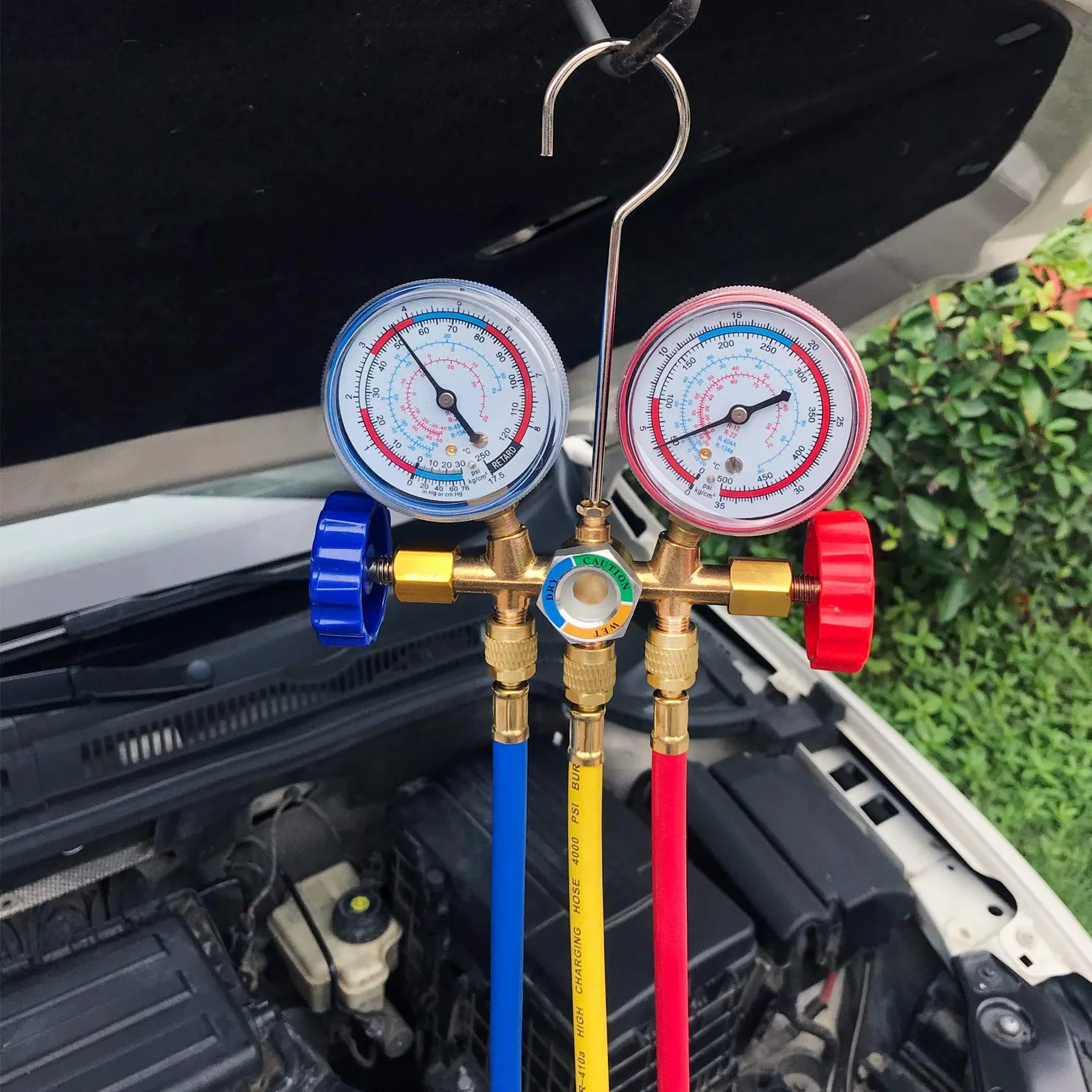

- Upgraded gauge shell stands up to heavy use and accidental drops. Great for AC freon charging, evacuation, diagnostic check, and recovery works for both automobiles and homes.
- Package Dimensions : 9.25 x 7.9 x 3 inches; 2.95 Pounds
- Date First Available : February 21, 2021
- Manufacturer : YSTOOL
